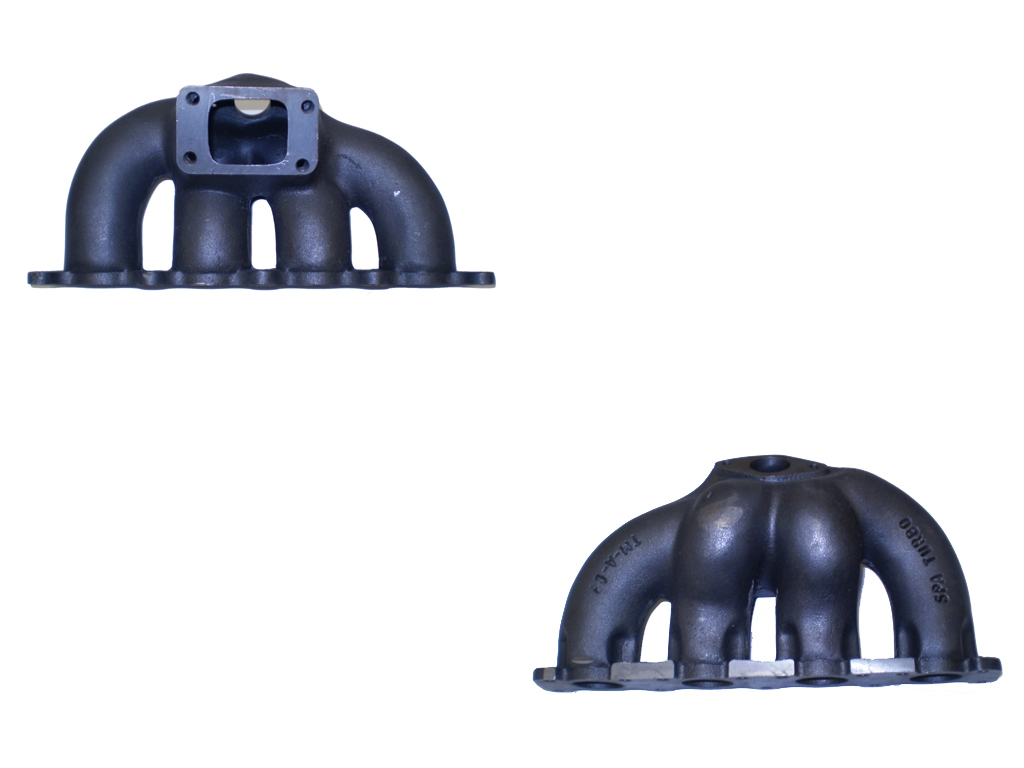

Turbomanifold Spa 1.8T Nickel Casting T3 Flange + 38mm WG Connection

- Spa 1.8T Turbo Manifold high-quality nickel casting with Wastegate connection 35/38mm

Technical Specifications:

- Cast Turbo Manifold

- T3 Flange (measured hole center 86x45mm) 4x M10 Thread

- Wastegate connection 35 or 38mm 2x M8 Thread

- Wastegate flange can also be closed to accommodate turbochargers with internal Wastegate

Description:

Our cast manifolds are produced in a metal mould from high-quality casting and then CNC machined, which is distinguished by its high fit accuracy. Unlike the tube manifold, this one is more durable. Additionally, the manifold has a connection for a Wastegate.

Suitable for:

- all Audi/VW 1.8T engines

- Turbochargers with T3 Flange:

Garrett T3, Garrett T3/T4, Garrett GT3076R, Garrett GT3582R

Garrett GTX3071R, Garrett GTX3076R, Garrett GTX3576R, Garrett GTX3582R, Garrett GT3776, Garrett GT3782

T3, T3/T60,T3/T4, T3/T70, GT3076 HF, GTR-485, GTR-510, GTR-525, GTR-525 HF, GTR-550, GTR-550 HF, GTR-600, GTR-650, GTR-650 HF

Optional Suitable Accessories:

- Manifold Gasket T3 to the Turbo

- Copper Nuts M8

- Copper Nuts M10

- Stud Bolts M10

- Stud Bolts M8

- Closure Plate 38mm for Wastegate

- Wastegate 38mm Gasket
