Scope of Delivery:

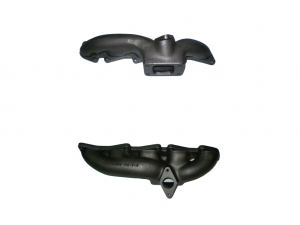

- Turbo manifold for Fiat Coupe 20v Turbo
Technical Specifications:
- Cast
- T3 Flange (Bolt dimensions 86x45mm) 4x M10 Threads
- Bolt dimensions to cylinder head 33x48.5mm
- Wastegate connection 35/38mm 2x M8 Threads
- Wastegate flange can also be closed, allowing for the use of turbochargers with internal wastegates
Description:
Our cast manifolds are made in a metal mold from high-quality cast and then CNC-machined, which is characterized by high accuracy of fit. Unlike tubular manifolds, these are more durable.
Suitable for:
- all Fiat 2.0L 20v 5 cylinder engines Coupe and Kappa Marea with air conditioning
- Turbochargers with T3 Flange:
Garrett T3, Garrett T3/T4, Garrett GT3076R, Garrett GT3582R
Garrett GTX3071R, Garrett GTX3076R, Garrett GTX3576R, Garrett GTX3582R, Garrett GT3776, Garrett GT3782
T3, T3/T60,T3/T4, T3/T70, GT3076 HF, GTR-485, GTR-510, GTR-525, GTR-525 HF, GTR-550, GTR-550 HF, GTR-600, GTR-650, GTR-650 HF
Optionally Compatible Accessories:
- Exhaust manifold gasket T3 to the turbo
- Closure plate 38mm for Wastegate
