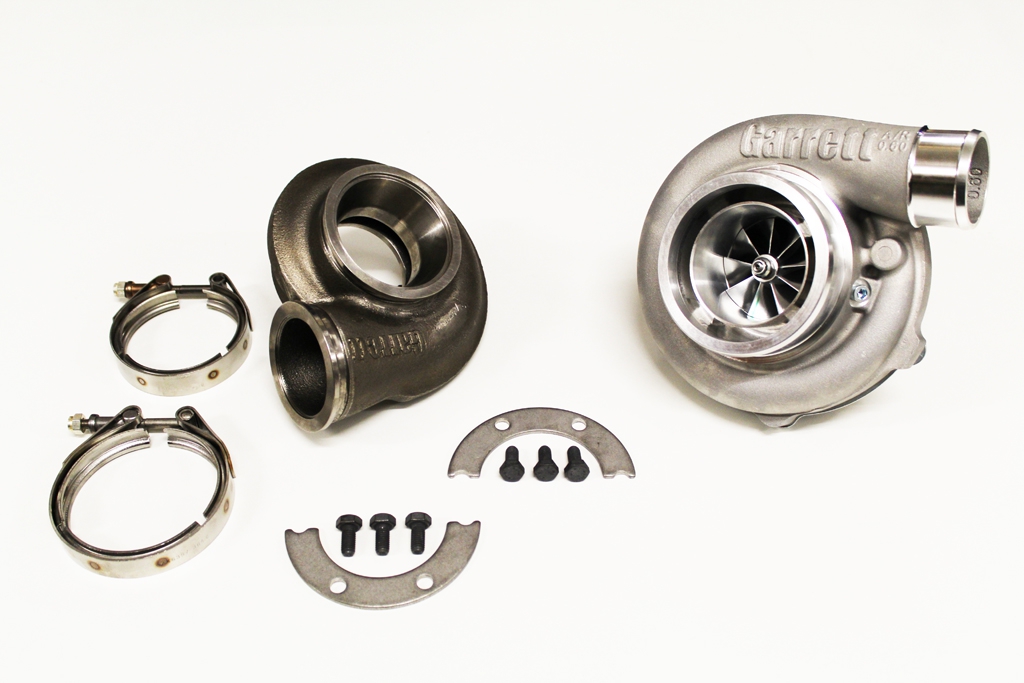

Garrett GTX3076R GEN II 856801-5038S 400-750PS V-Band 83 A/R ball bearing Ceramic ball bearing

Technical specifications:

- Exhaust housing 83 A/R V-Band inlet and outlet

- for external waste gate

- Fresh air housing High-Flow 60A/R - Trim 58

- Fresh air wheel: Exducer 76mm - Inducer 58mm

- Ceramic double ball bearing

- Power 400-750HP

- Oil-cooled

- Part No. 856801-5038S

- Turbine wheel Inconel: Inducer 60mm - Exducer 55mm - Trim 84

- Water-cooled

Suitable for:

- Engines with capacity from 1.8L to 3.0L 400-750HP

Compatible accessories:

- Gasket for oil return flange 170109

- Gasket for water connection 170116

- Hollow screw M14 for water connection 300138
