Garrett GTX2867R GEN II 856800-5005S 275-550PS V-Band 57 A/R ball bearing Ceramic ball bearing

For a larger view click on the thumbnail

1.580,00 EUR

19 % VAT incl. excl. Shipping costs

Add to cart Check out withPayPal

Shipping time: 3-4 Tage

Product no.: 440470

Scope of Delivery:

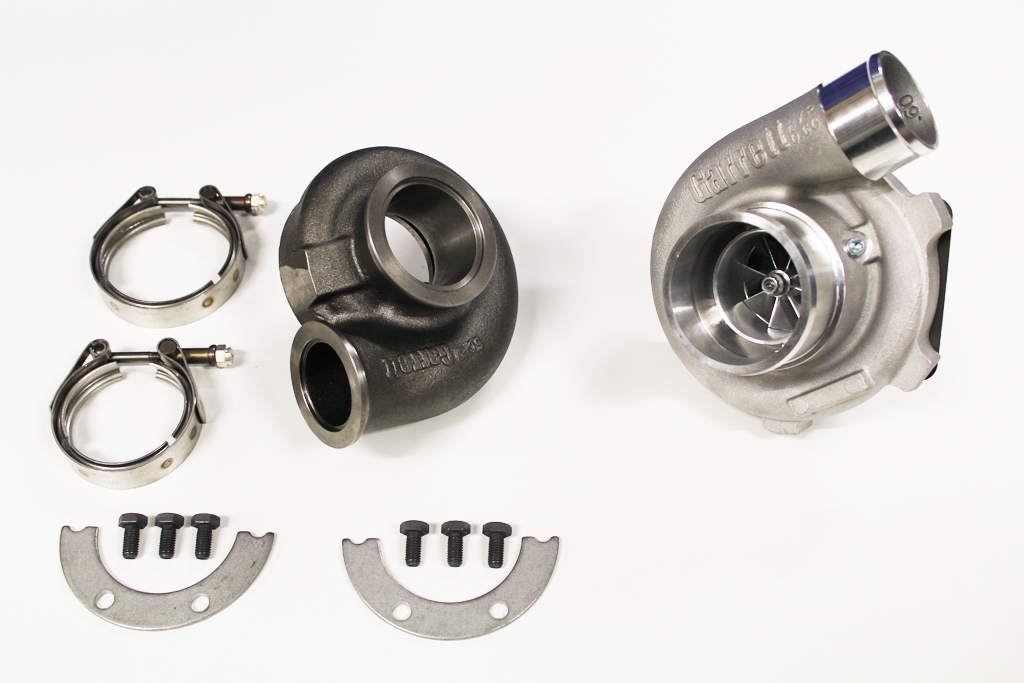

- Garrett GTX2867R GEN II 856800-5005S 275-550HP V-Band 57 A/R ceramic ball bearing including mounting materials

Technical Data:

- Turbine housing 57 A/R V-Band inlet 63.5mm (measured outside the ring) and outlet 76.1mm (measured outside the ring)

- Connection for speed sensor

- For external wastegate

- High-Flow 60A/R fresh air housing - Trim 58 - Inlet 76mm - Outlet 51mm

- Fresh air wheel: Exducer 67mm - Inducer 50mm

- Ceramic dual ball bearing (ball bearing)

- Power 275-550HP

- Oil cooled

- Part No. 856800-5005S

- Turbine wheel Inconel: Inducer 54mm - Exducer 47mm - Trim 76

- Water cooled

Suitable for:

- Engines with displacement from 1.4L to 2.5L 275-550HP

Compatible Accessories:

- Gasket for oil return flange 170109
