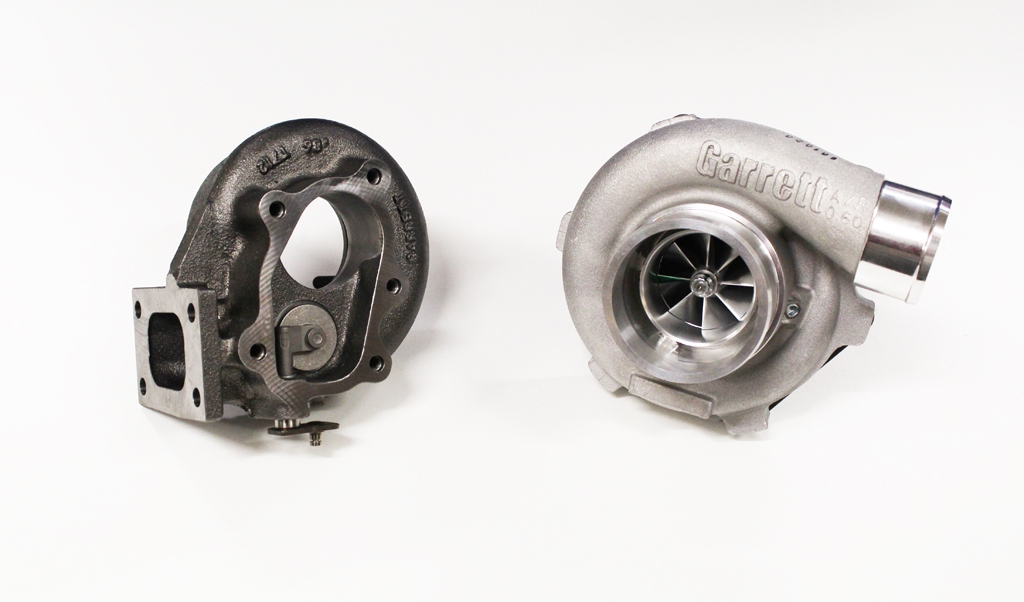

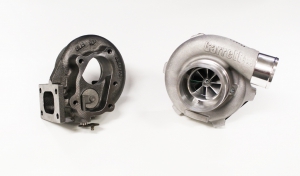

Garrett GTX2860R GEN II 856800-5004S 200-475PS T25 86A/R ball bearing Ceramic bearing

Technical Data:

- Exhaust housing 86A/R T25 - 5 hole outlet

- Connection for RPM sensor

- Intake housing High-Flow 60A/R - Trim 58

- Fresh air wheel: Exducer 60mm - Inducer 46mm

- Ceramic dual ball bearing (ball bearing)

- Power 200-475HP

- Internal wastegate without actuator

- Oil-cooled

- Part No. 856800-5004S

- Turbine wheel Inconel: Inducer 54mm - Exducer 47mm - Trim 76

- Water-cooled

Suitable for:

- Engines with displacement from 1.4L to 2.5L 200-475HP

Matching Accessories:

- Gasket for downpipe flange 170104

- Gasket for T25 flange 170100

- Gasket for oil return flange 170109

- Gasket for water connection 170116
